Introducing our Portable Fiber Laser Marking Machine, the ultimate solution for high-precision marking on a variety of materials, in a PORTABLE SIZE.

This incredibly versatile machine can mark on all metals, as well as select plastics such as polycarbonates and ABS, making it suitable for a wide range of applications. With no consumables required, this machine offers a cost-effective and sustainable marking solution. Additionally, its easy-to-learn software and plug-and-play functionality ensure a seamless and user-friendly experience for operators of all levels. Whether you're in the automotive, aerospace, or medical industries, our Fiber Laser Marking Machine is the ideal choice for achieving precise and durable marks on your products.

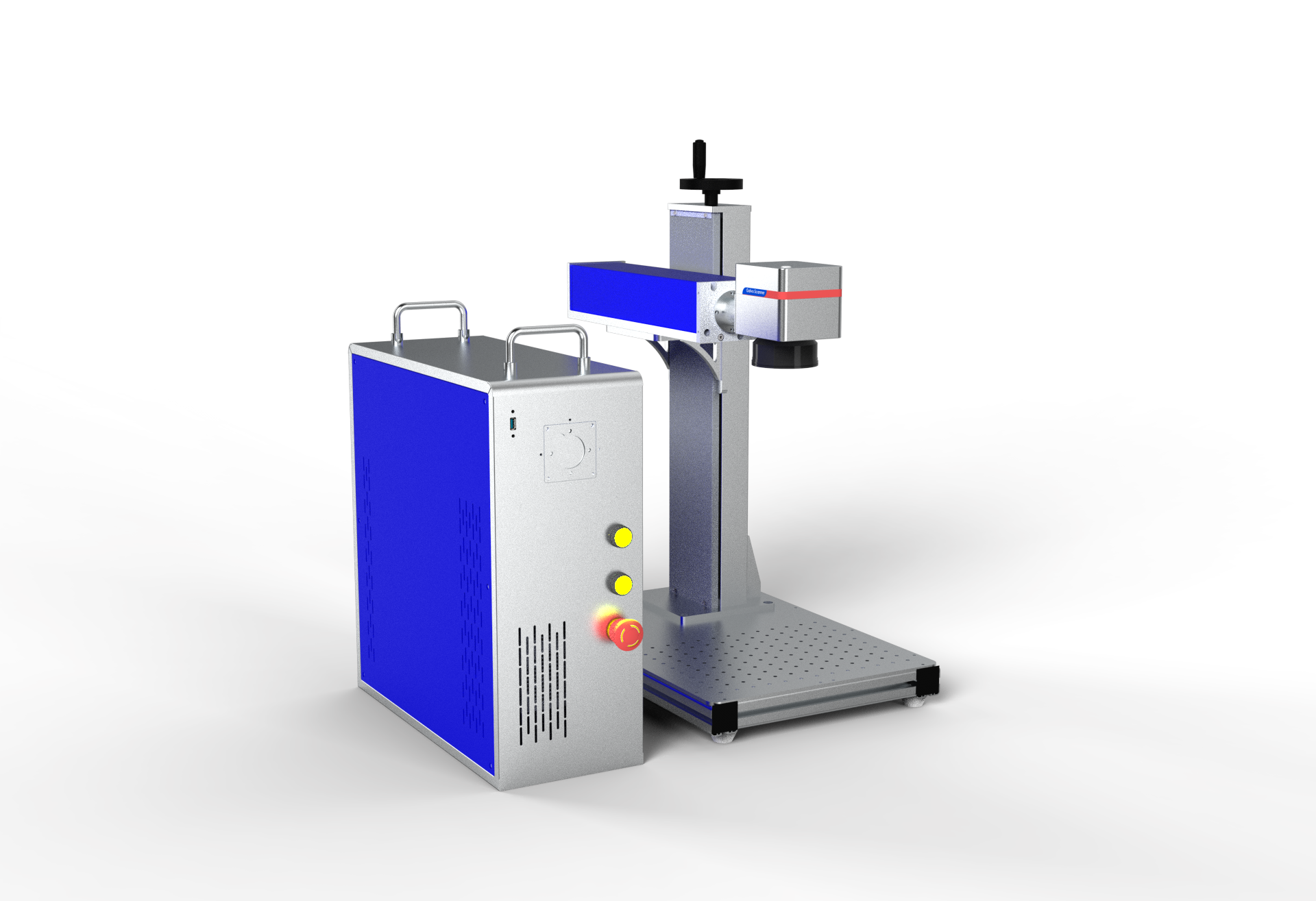

Portable 3 Fiber Laser Marking Machine

  • Laser power: 20W/30W/50W/100W
  • Laser wavelength: 1064mm
  • Laser source: IPG/ RAYCUS/ MAX/ JPT
  • Q-switch frequency: 20kHz-100kHz
  • Optical quality: M2s1.4
  • Marking 􀀀eld: 175*175mm/ 200*200mm/ 300*300
  • Minimum line width: 0.01mm
  • Minimum character: 0.1mm
  • Marking speed: 0-7000m/s
  • Cooling system: air cooling
  • Repeat accuracy: 0.01mm
  • Input power: AC 220V 10% 50Hz (60Hz)
  • Power of machine: 500W
  • Lifetime: 100,000 hours (if properly operated)
  • What is fiber laser cutting machine?
    A fiber laser cutting machine is a type of industrial tool used for cutting various materials with precision and efficiency. It utilizes a high-power fiber laser to focus intense Laser energy onto the surface of the material, which causes it to melt, vaporize, or burn away, thus creating a clean and precise cut. Fiber lasers are known for their high energy efficiency, reliability, and low maintenance requirements compared to other types of lasers. Here are some key components and features of a fiber laser cutting machine: Fiber Laser Source: The heart of the machine is the fiber laser source, which generates the laser beam which is passed through a fiber optic cable used for cutting. Fiber lasers use a solid-state laser medium, typically made of doped optical fibers, to produce a highly concentrated beam of light. Beam Delivery System: The laser beam is delivered to the cutting head through a series of mirrors and fiber optic cables. The beam delivery system ensures that the laser beam is properly focused and directed onto the material being cut. Cutting Head: The cutting head contains focusing optics that concentrate the laser beam onto the material's surface, ensuring precision and accuracy in the cutting process. Some cutting heads may also include features like automatic nozzle cleaning and collision detection. CNC Controller: A computer numerical control (CNC) system controls the movement of the cutting head and coordinates the cutting process according to the desired design or pattern. Operators can input the cutting parameters and design specifications into the CNC controller to produce accurate cuts. Worktable: The worktable provides a stable platform for holding the material being cut. It may be fixed or adjustable depending on the specific application and requirements. Fiber laser cutting machines are commonly used in industries such as manufacturing, automotive, aerospace, fabrication applications and electronics for cutting all types of metals known to man. They offer advantages such as high cutting speeds, minimal heat-affected zones, excellent precision, and the ability to cut complex shapes with ease. Additionally, fiber lasers are environmentally friendly as they require less energy and produce less waste compared to other cutting methods.
  • What are the disadvantage of laser cleaning machine?
    Laser cleaning machines offer numerous advantages over traditional cleaning methods, such as precision, non-contact cleaning, and environmental friendliness. However, they also come with some disadvantages: Cost: Laser cleaning machines can be expensive to purchase and maintain compared to traditional cleaning methods. The initial investment in the equipment and ongoing maintenance costs may be prohibitive for some businesses. Safety concerns: Laser cleaning involves the use of high-powered lasers, which can pose safety risks if not used properly. Operators must be trained to handle the equipment safely, and proper safety protocols must be followed to prevent accidents and injuries. Limited materials: Laser cleaning may not be suitable for all materials. Some materials may absorb too much laser energy or be damaged by the process, limiting the range of applications for laser cleaning machines. Surface damage: While laser cleaning is designed to remove contaminants without damaging the underlying surface, there is still a risk of surface damage, especially if the laser parameters are not properly calibrated. Delicate surfaces or materials may be susceptible to heat damage or other forms of damage during the cleaning process. Environmental considerations: While laser cleaning is generally considered to be environmentally friendly compared to traditional cleaning methods that use chemicals or abrasives, it still requires energy to operate. Additionally, the disposal of laser waste products, such as removed contaminants or spent laser materials, may pose environmental challenges if not handled properly. Limited mobility: Laser cleaning machines are typically stationary or semi-portable, which may limit their usability in certain applications or environments where mobility is required. Operator training: Proper operation of laser cleaning equipment requires specialized training and expertise. Operators must be familiar with the equipment, safety protocols, and best practices to ensure effective and safe cleaning results. Overall, while laser cleaning machines offer many benefits, it's important for businesses to carefully consider these disadvantages and weigh them against the advantages when deciding whether to invest in this technology.
  • Is laser cleaning a profitable business?
    Laser cleaning can be a profitable business depending on various factors such as market demand, competition, operational costs, and the effectiveness of your marketing and sales strategies. Here are some considerations: Market Demand: Evaluate the demand for laser cleaning services in your target market. Industries such as automotive, aerospace, cultural heritage restoration, and manufacturing often require surface cleaning solutions, which could create opportunities for your business. Competition: Assess the level of competition in your area or target market. If there are few competitors offering laser cleaning services, it could be easier to establish yourself and capture market share. However, if the market is saturated, you may need to differentiate your services or target niche markets. Costs: Consider the initial investment required for equipment, training, and setup. Laser cleaning machines can be expensive, but they offer advantages such as efficiency and precision. Calculate your operational costs, including electricity, maintenance, and labor, to ensure profitability. Profit Margins: Determine your pricing strategy based on your costs, market demand, and perceived value. Since laser cleaning often provides superior results compared to traditional methods, you may be able to command higher prices, resulting in healthy profit margins. Regulations and Safety: Ensure compliance with regulations related to laser safety and environmental protection. Invest in proper training for your staff to handle laser equipment safely and effectively. Marketing and Sales: Develop effective marketing strategies to promote your laser cleaning services. This may include creating a professional website, networking with potential clients, attending industry events, and leveraging social media platforms. Highlight the benefits of laser cleaning, such as eco-friendliness, minimal surface damage, and faster cleaning times, to attract customers. Customer Satisfaction: Focus on delivering high-quality results and excellent customer service to build a loyal customer base and generate repeat business and referrals. Overall, with careful planning, strategic execution, and a focus on delivering value to customers, laser cleaning can indeed be a profitable business venture.
  • Does laser cleaning machine work?
    Yes, laser cleaning machines do work and are commonly used for various applications. Laser cleaning is a technique used to remove contaminants, such as rust, paint, grease, or other unwanted materials, from surfaces using a focused laser beam. The process works by directing a high-intensity laser beam onto the surface to be cleaned. The energy from the laser beam interacts with the contaminants, causing them to vaporize or ablate without damaging the underlying substrate. This method is effective for cleaning delicate or sensitive surfaces, as it does not involve the use of harsh chemicals or abrasive materials that could potentially damage the surface. Laser cleaning machines are used in a wide range of industries, including automotive, aerospace, electronics, conservation/restoration, and manufacturing, among others. They offer several advantages, such as precision cleaning, minimal waste generation, and the ability to automate the cleaning process for efficiency. However, the effectiveness of a laser cleaning machine can vary depending on factors such as the type of material being cleaned, the laser parameters used, and the specific application requirements.
  • What is laser cutting machine?
    A laser cutting machine is a tool used in the precise cutting of materials with the help of a high-powered laser beam. These machines are highly accurate and can cut through a wide range of materials, including metal, wood, plastic, glass, ceramics, and composites. The basic principle behind laser cutting involves focusing a concentrated beam of light (laser) onto the surface of the material to be cut. The intense heat generated by the laser melts, burns, or vaporizes the material along the desired cutting path, creating a clean and precise cut edge. Laser cutting machines are controlled by computer numerical control (CNC) systems, allowing for precise and complex patterns and designs to be cut with ease. They are commonly used in industries such as automotive, aerospace, electronics, signage, and jewelry making, gifting, among others, due to their high precision, speed, and versatility.
  • What are 3 main types of laser cutting?
    Three main types of laser cutting techniques are: CO2 Laser Cutting: This type of laser cutting uses a carbon dioxide gas mixture as the laser medium. CO2 lasers are commonly used for cutting materials such as ply wood, plastic, acrylic and fabrics. The wavelength of CO2 lasers is well-suited for materials that are not highly reflective. Fiber Laser Cutting: Fiber laser cutting utilizes a solid-state laser source, typically doped with elements such as erbium, ytterbium, or thulium. Fiber lasers are known for their high efficiency and are widely used for cutting metals, including steel, aluminum, brass, and copper. They are particularly effective for thin to medium thickness materials. Nd:YAG Laser Cutting: Nd:YAG (neodymium-doped yttrium aluminum garnet) lasers use a crystal as the laser medium, doped with neodymium ions. These lasers are suitable for cutting thicker metals and materials that are highly reflective, such as stainless steel and aluminum. Nd:YAG lasers can also be used for cutting non-metallic materials like ceramics and some plastics. They offer precise cutting capabilities and can be used for both thick and thin materials. Each type of laser cutting method has its own advantages and applications, and the choice between them depends on factors such as material type, thickness, desired cutting speed, and precision requirements.
  • What is CO2 laser machine used for?
    CO2 (carbon dioxide) laser machines are used for a variety of purposes across different industries due to their ability to deliver high-power laser beams. Some common applications include: Industrial Cutting and Welding: CO2 lasers are frequently employed in industrial settings for cutting and welding various materials such as metals, plastics, ceramics, and composites. They provide precise and clean cuts, making them suitable for manufacturing processes. Engraving and Marking: These lasers are used for engraving and marking on materials like wood, glass, acrylic, leather, and coated metals. They can create intricate designs, serial numbers, barcodes, and logos with high precision. Printing and Packaging: CO2 lasers are used in the printing and packaging industry for tasks such as cutting and perforating paper, cardboard, and other packaging materials. They can create intricate patterns and designs efficiently. Textile Processing: CO2 lasers are utilized in the textile industry for cutting fabrics, engraving designs, and creating intricate patterns. They offer advantages such as precise cutting, sealed edges, and minimal material waste. Art and Craft: Artists and hobbyists use CO2 lasers for various creative projects such as etching designs on glass, engraving on wood, cutting intricate patterns in paper, and creating custom signage. Overall, CO2 laser machines are versatile tools that find applications in manufacturing, healthcare, printing, textiles, and various other industries where precision and control over material processing are crucial.
  • Which Laser Machine is best?
    Determining the "best" laser machine depends on several factors including your specific requirements, budget, and the material you intend to use it on. When choosing a laser machine, consider factors such as cutting/engraving/marking quality, speed, precision, ease of use, maintenance requirements, customer support etc. To make it a little simpler to understand... Materials that fiber laser machine works on: All Metals & A few plastics (plastics onlt in making machine) Materials that CO2 laser machine works on: All Non-Metals. For e.g.: Fabric, Leather, Acrylic, Ply wood, MDF etc. Materials that UV laser machine works on: All Plastics and Glass. There are a few other older technologies of laser machines that have not been mentioned in this list such as PLASMA LASER. However, this list will give you a fairly good ideas of Which Laser Machine is best for YOU!
  • Why is laser machinery expensive?
    Laser technology can be expensive for several reasons: Research and Development Costs: The initial development of laser technology involves significant investment in research, experimentation, and engineering. This cost is often passed on to consumers in the form of higher prices for laser products. Precision Engineering: Lasers require extremely precise engineering to produce the desired wavelength, intensity, and focus. Achieving this precision requires advanced manufacturing processes and high-quality materials, which contribute to the overall cost. Specialized Components: Lasers often incorporate specialized components such as optical elements, semiconductor materials, and cooling systems, where the laser generator, widely know as the SOURCE of the machine, being the most expensive component of the machine. These components are typically more expensive than those used in conventional technologies, adding to the cost of manufacturing. Quality Control: Maintaining the quality and reliability of laser systems requires rigorous quality control measures throughout the manufacturing process. This includes testing components, calibrating systems, and ensuring consistency in performance, all of which add to the cost. Low Production Volumes: Many laser products are produced in relatively low volumes compared to other consumer electronics, which can drive up the cost per unit due to economies of scale. Mass production techniques that lower costs for high-volume products may not be applicable to lasers. Safety Regulations: Lasers are classified as Class 3B or Class 4 devices by regulatory bodies like the FDA in the United States. Meeting the safety standards and regulatory requirements adds to the cost of manufacturing and certification. Advanced Applications: Some laser technologies are used in specialized applications such as medical devices, industrial cutting, scientific research, and military systems. These applications often require custom solutions and higher levels of performance, which come at a premium price. Ongoing Innovation: Laser technology is continually evolving, with new advancements and breakthroughs driving further research and development. As newer technologies emerge, older systems may become more expensive due to limited availability or higher demand for legacy components. Overall, while laser technology offers numerous benefits and applications, the complexity of its design, manufacturing, and regulatory requirements contribute to its relatively high cost.
  • Is laser machine cheaper than CNC Machine?
    Comparing the cost of laser machines to CNC (Computer Numerical Control) machines can be complex and depends on various factors such as the specific type of machine, its capabilities, size, brand, and additional features. Here are some general points to consider: Initial Cost: In many cases, laser cutting machines tend to have a lower initial cost compared to CNC machines. This is particularly true for entry-level or smaller-sized laser cutters. However, larger and more specialized laser cutting machines can be quite expensive. Operating Costs: Laser machines typically have lower operating costs compared to CNC machines, especially in terms of energy consumption and maintenance. Laser machines often require less maintenance and fewer consumable parts (such as cutting tools) compared to CNC machines. Material Compatibility: CNC machines are versatile and can work with a wide range of materials, including metals, plastics, and wood. Laser machines are also versatile but may have limitations with certain materials, especially metals that reflect or absorb laser energy differently. Precision and Speed: CNC machines generally offer higher precision and can be faster than laser machines for certain applications, especially when working with metals. However, laser machines excel in tasks like cutting intricate shapes and intricate designs with high precision. Additional Costs: Both types of machines may require additional equipment or accessories depending on the specific application. For example, CNC machines may need tool changers, coolant systems, or specialized clamping systems, while laser machines may require fume extraction systems or additional safety features. Market Factors: Prices can vary based on market demand, technological advancements, and competition among manufacturers. It's essential to research current market trends and compare prices from different suppliers before making a purchase. Ultimately, whether a laser machine is cheaper than a CNC machine depends on your specific needs, the materials you'll be working with, the desired level of precision and speed, and your budget constraints. It's advisable to thoroughly evaluate your requirements and consider factors beyond just the initial cost when making a decision.
  • What is UV laser marking machine?
    A UV laser marking machine is a type of laser marking system that utilizes ultraviolet (UV) laser technology to mark or engrave surfaces with high precision. UV lasers emit light with a shorter wavelength compared to other types of lasers, such as fiber or CO2 lasers. This shorter wavelength allows UV lasers to produce very fine markings on a variety of materials, including plastics, glass, and certain types of polymers. UV laser marking machines are often preferred for applications that require extremely precise and high-contrast markings, such as in the electronics, semiconductor, medical device, and aerospace industries. Some common uses of UV laser marking include product labeling, serial number engraving, barcoding, surface texturing, and micro-machining. One of the key advantages of UV laser marking is its ability to create markings without causing damage to the surrounding material or affecting its structural integrity. Additionally, UV lasers can produce markings that are resistant to fading, abrasion, and other environmental factors. Overall, UV laser marking machines offer a versatile and efficient solution for a wide range of marking and engraving applications, particularly where fine detail and high-contrast markings are required.
  • Does laser marking use ink?
    No, laser marking does not use ink. Laser marking is a process where a laser beam is used to mark or engrave a surface by removing material to give a deep marking or making a mark on the surface by burning the material. The laser beam interacts with the surface, altering its properties to create the desired mark. This process is commonly used in various industries for permanent labeling, branding, or identification purposes on materials such as metals, plastics, ceramics, glass, MDF, Ply wood and more. Since it doesn't involve the application of ink, laser marking offers advantages like high precision, durability, and permanency.
  • Is Laser Marking Permanent?
    Yes, laser marking is a permanent form of etching. Laser marking involves using a focused laser beam to alter the surface of a material by burning it, creating a visible mark. The process typically involves heating the material, causing a color change, oxidation, or material removal, depending on the type of material being marked. The permanence of laser marking depends on various factors such as the type of material being marked, the laser parameters used, and the intended application. In many cases, laser marks are highly resistant to wear, fading, and corrosion, making them suitable for a wide range of applications including industrial part marking, product branding, and labeling. However, the permanence of laser marking may vary depending on factors such as abrasion, or chemical exposure. In general, laser marking is considered one of the most durable and long-lasting marking methods available.
  • How fast is laser marking?
    The speed of laser marking can vary depending on several factors including the type of material being marked, the desired depth or intensity of the mark, the power (Wattage) and type of laser used, and the complexity of the design being marked. Generally, laser marking is known for its high-speed capabilities compared to traditional marking methods such as mechanical engraving or ink printing. Laser marking machines can often achieve marking speeds. The speed of the machine can also been increased by using a HIGH SPEED GALVO, to make it compatible with let’s say… a conveyor, extruder etc. For example, some laser marking systems used in industrial applications can mark thousands of parts per hour, making them highly efficient for high-volume production lines. However, the exact speed achievable will depend on the specific requirements of the marking job and the capabilities of the laser marking equipment being used.
  • What Does the laser marking machine do?
    A laser marking machine is a CNC machine tool used for marking or labeling various materials using a laser beam. It works by generating a laser beam with the help of a laser generator, commonly known as the laser SOURCE. This beam of light is then directed on to the product through the help of a lens to help focus the beam of light in to a precise and controlled beam! The laser beam then burns the surface of the material (anneal) to create a permanent marking on the surface of the material. This process is known as laser marking or laser engraving. Laser marking can be done on several different types of materials, including both METALS & NON-METALS. However, all the materials cannot be marked by the same kind of marking machine! For e.g.: The Fiber Laser Marking machine can mark all different types of metals and a few types of plastics. The UV Marking Machine can mark all types od plastics and glass. And the CO2 Marking Machine can mark non- metal products such as; leather, MDF, Acrylic etc.
  • What are the disadvantage of laser marking?
    Every product has its Pros & Cons While laser marking offers numerous advantages, there are also some processes associated with this technology that may pose as a challenge to the person purchasing this equipment: Initial Cost: The equipment required for laser marking can be expensive to purchase and set up, especially for high-power or specialized systems. This initial investment might be a barrier for small businesses or startups. Material Limitations: Each Laser marking machine is created to specialize is a few materials, making it difficult to mark some different materials with the same machine. For e.g.: a fiber laser marking machine will mark all metals and some plastics… however, it will not work on acrylic and glass! Removing Rust Protective Surfaces: When talking about marking a product with is powder coated, anodized, plated, lacquered etc. The laser marking process will burn off the top coat in the product leaving that particular mark raw and exposed. This may cause some sort of oxidation to that surface due to air and moisture in the atmosphere. Thus, another form of coating may be required on a material prone to rusting to prevent this. Environmental Impact: Certain types of laser marking processes may generate hazardous fumes or waste materials, depending on the material being marked and the specific marking method used. Proper ventilation and waste management are necessary to mitigate these environmental impacts. However, the laser machine is better to use than any other machine and creates less of these fumes and waste compared to other machines. Despite these disadvantages, laser marking remains a popular choice for many applications due to its precision, versatility, and permanence compared to other marking methods.
  • How many types of laser marking machines exist in the market?
    There are several types of laser marking machines, each suited for different applications and materials. Some common types include: Fiber Laser Marking Machines: These machines use a fiber laser source and are suitable for marking metals, plastics, and some ceramics. They offer high precision and fast marking speeds. CO2 Laser Marking Machines: CO2 lasers are often used for organic materials such as wood, paper, MDF, leather etc. They only mark on non-metal products. UV Laser Marking Machines: UV lasers are used for marking materials such as all plastics and glass.
  • What is CO2 Laser Marking Machine?
    A CO2 laser marking machine is a type of laser marking system that uses a carbon dioxide (CO2) laser to mark or engrave various materials. These machines utilize a high-powered laser beam to etch or engrave the surface of materials such as wood, glass, plastic, rubber, leather, ceramics, and some metals. The CO2 laser marking process works by focusing a concentrated beam of infrared light onto the surface of the material. The intense heat generated by the laser beam causes the material to be anneled or burned, leaving behind a permanent mark or engraving. CO2 laser marking machines are commonly used on Materials such as, acrylic, leather, fabric, MDF, plywood etc., They offer high precision, speed, and versatility, making them suitable for a wide range of materials and applications.
  • What are some common applications and functionalities of laser marking machines?
    Here are some common applications and functionalities of laser marking machines: Product Identification: Laser marking machines are commonly used for marking serial numbers, barcodes, QR codes, and other identifiers on products. This helps with traceability and anti-counterfeiting efforts. Personalization: They can engrave text, logos, or graphics onto items for personalization purposes. This is commonly seen in the customization of promotional items, gifts, and awards. Material Processing: Laser marking machines can be used to mark various materials, including metals, plastics, ceramics, glass, and wood. The mark can be surface etching, annealing, engraving, or foaming, depending on the material and the desired outcome. Medical Device Marking: In the medical industry, laser marking is used for marking medical devices and instruments with important information such as lot numbers, expiration dates, and regulatory symbols. Electronics Industry: Laser marking is used in the electronics industry for marking components such as circuit boards, chips, and connectors with identification codes, logos, or other relevant information. Aerospace and Automotive Industries: Laser marking is utilized for part identification and tracking in these industries, ensuring components can be traced throughout their lifecycle. Anti-Counterfeiting Measures: Laser marking can be used to create intricate marks that are difficult to replicate, aiding in the prevention of counterfeiting. Precision and Accuracy: Laser marking machines offer high precision and accuracy, allowing for intricate designs and small details to be marked with consistency. Overall, laser marking machines provide a versatile and efficient method for permanently marking a wide range of materials with various types of information or designs.
  • What difference between 20W & 30W laser marking machine?
    The main difference between a 20W and a 30W laser marking machine lies in their power output, which affects their performance in terms of speed, depth, and precision of marking. Here's a breakdown: Power Output: The numerical value (20W and 30W) indicates the power output of the laser. A 30W laser marking machine will have higher power output compared to a 20W machine. This means it can deliver more energy per unit time, which generally translates to faster marking speeds and potentially deeper or more precise marking. Speed: Due to its higher power output, a 30W laser marking machine will typically mark materials faster than a 20W machine. This can be advantageous in industrial settings where throughput and productivity are important factors. Depth and Precision: Higher power lasers can often create deeper marks on certain materials or achieve finer details with greater precision. However, this also depends on factors like the type of material being marked and the specific settings of the laser system. Cost: Generally, higher power lasers come with a higher price tag. So, a 30W laser marking machine may be more expensive than a 20W machine. Material Compatibility: Some materials may require higher power lasers for effective marking. For example, marking on metals often requires higher power lasers compared to marking on plastics or organic materials. Ultimately, the choice between a 20W and a 30W laser marking machine depends on factors such as the specific requirements of the marking application, the materials being marked, desired throughput, budget considerations, speed of production and any other specific needs of the user. It's essential to consider these factors carefully before making a decision.
  • Are laser welding machine good?
    Laser welding machines can be highly effective tools for joining materials in various industries. They offer several advantages over traditional welding methods, including: Precision:Laser welding provides precise control over the welding process, allowing for highly accurate and consistent results. Speed:Laser welding is often faster than traditional welding methods, particularly for thin materials or small components. Versatility: Laser welding machines can weld a wide range of materials, including metals, plastics, and ceramics. Minimal distortion: Laser welding produces minimal heat-affected zones and distortion, making it suitable for delicate or precision components. Automation: Laser welding can be easily integrated into automated manufacturing processes, increasing efficiency and reducing labor costs. Cleanliness: Laser welding produces minimal spatter and no fumes, resulting in a cleaner working environment. However, like any technology, the effectiveness of a laser welding machine depends on various factors, including the specific application, the quality of the machine, and the expertise of the operator. It's essential to evaluate your requirements carefully and consider factors such as cost etc. before investing in a laser welding machine. Overall, if used correctly, laser welding machines can offer significant benefits in terms of efficiency, quality, and flexibility.
  • Is laser welding better then MIG welding?
    Whether laser welding is better than MIG (Metal Inert Gas) welding depends on various factors such as the specific application, material, desired outcomes, and budget constraints. However Laser Welding Offers: Precision: Laser welding offers high precision and accuracy, making it suitable for delicate and intricate work. Speed: It can be faster than traditional welding methods like MIG welding, especially for thinner materials. Heat Affected Zone (HAZ): Laser welding generates a smaller heat-affected zone compared to MIG welding, which can help minimize distortion and reduce the need for post-welding processes. Automation: Laser welding can be easily automated, which increases efficiency and consistency in production lines. Cleanliness: It produces clean welds with minimal spatter, reducing the need for cleaning or post-welding treatments. Versatility: Laser welding is versatile and can be used to weld all types of metals which is not available in MIG Welding. Laser welding is also capable of welding two different types of materials together. For e.g.: Stainless Steel & Brass can be welded and fused together with laser welding. Cost: MIG welding equipment is generally more affordable and accessible compared to laser welding systems. Ease of Use: Laser welding is relatively easier to learn and master compared to MIG welding, and doesn’t require a skilled welder making it suitable for a broader range of applications and skill levels.
  • What is laser spot welding machine?
    A laser spot welding machine is a type of welding equipment that utilizes a focused laser beam to join two or more pieces of metal together. In spot welding, a localized heat source is used to melt and fuse the materials, creating a strong bond at the point of contact. Here's how a laser spot welding machine typically works: Focusing optics: The machine directs a high-powered laser beam through focusing optics to concentrate it into a small spot size. This focused beam provides intense heat energy to the welding area. Workpiece alignment: The pieces to be welded are accurately positioned and aligned under the focused laser beam. Welding process: The laser beam is precisely controlled to deliver the required amount of energy to melt the material at the weld point. As the material melts, it forms a weld pool. The laser beam is then moved along the joint or held stationary, depending on the welding requirements. Cooling: Once the welding is complete, the weld area cools and solidifies, creating a strong bond between the materials. Advantages of laser spot welding machines include: Precision: Laser spot welding offers precise control over the welding process, allowing for highly accurate and consistent results. Minimal heat distortion: Since laser welding applies heat selectively to the weld area, it minimizes heat-affected zones and reduces distortion in the surrounding material. Speed: Laser welding is often faster than traditional welding methods, making it suitable for high-volume production. Versatility: Laser spot welding can be used to join a wide range of materials, including metals and alloys with different properties. These machines find applications in various industries such as automotive manufacturing, aerospace, electronics, medical device fabrication, and Jewelry Making, among others.
